可攜式心電圖記錄器 TD-2202
Our ECG Recorder was designed with a built-in 3.5" color touch screen. Its interface is user friendly with wireless communication and durable power. The user, or patient, can either equip a four-lead EKG cable for long term monitoring, or use PHC (Personal Healthcare Mode) for the electrodes function. This is an ideal device for both hospital and homecare use.
技術規格
產品規格:
1. TD-2202A no wireless function, with buzzer.
2. TD-2202B Full function ECG recorder with wireless, with buzzer.
標準內容:
Main unit, SD memory card, 3 x AAA battery, 5-leadwire electrode cable, 5 x ECG electrode, user manual.
Optional:
Soft-feel silicone jelly case

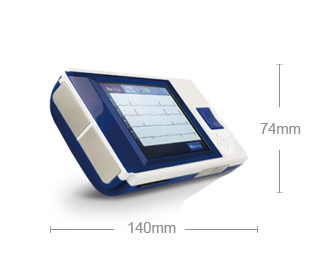

尺寸和重量
長度:
寬度:
高度:
重量:
寬度:
高度:
重量:
140mm
74mm
32.85mm
<160g
74mm
32.85mm
<160g
ECG signal(real-time or playback)
心電圖掃描速度:
心電圖心跳數率:
CMRR:
DC Offset Correction:
樣品分辨率:
心電圖心跳數率:
CMRR:
DC Offset Correction:
樣品分辨率:
25mm/s
30 ~ 250 Beat per Minute (bpm ± 2%)
> 90 dB
± 300 mV
100 samples/sec(for PHC Mode)
1K samples/sec (for Recording/Monitoring Mode)
30 ~ 250 Beat per Minute (bpm ± 2%)
> 90 dB
± 300 mV
100 samples/sec(for PHC Mode)
1K samples/sec (for Recording/Monitoring Mode)
特色
螢幕類型:
螢幕尺寸:
Sweep Speed:
背光:
QRS Beeping:
Recording Length:
錄音/監聽模式:
數據紀錄:
Interpretative Results:
螢幕尺寸:
Sweep Speed:
背光:
QRS Beeping:
Recording Length:
錄音/監聽模式:
數據紀錄:
Interpretative Results:
3.5" TFT LCD
320 x 240 pixels
25mm/sec, Nominal
Can be turned on or off
Can be turned on or of
PHC Mode: 30 sec./ record (max 256 records)
24 hr (no data compression in 2 Gbits flash memory)
ECG waveform, recording time
Heart rate, arrhythmia, QRSD
320 x 240 pixels
25mm/sec, Nominal
Can be turned on or off
Can be turned on or of
PHC Mode: 30 sec./ record (max 256 records)
24 hr (no data compression in 2 Gbits flash memory)
ECG waveform, recording time
Heart rate, arrhythmia, QRSD
功能
電源:
使用壽命:
環境溫度:
儲存溫度:
環境濕度:
使用壽命:
環境溫度:
儲存溫度:
環境濕度:
1.5V x 3 AAA type batteries
>24 hrs Typical Operation
0º to 40º C
-20º to 65º C ; -4º to 122º F
15% to 90%, Non-Condensing
>24 hrs Typical Operation
0º to 40º C
-20º to 65º C ; -4º to 122º F
15% to 90%, Non-Condensing
Classification
防護等級:
操作模式:
安全性:
EMC:
執行標準:
操作模式:
安全性:
EMC:
執行標準:
Type BF Applied Part
Continuous
IEC60601-1; IEC60601-2-47
IEC60601-1-2
American Advancement of ANSI/AAMI EC 38-1998
Continuous
IEC60601-1; IEC60601-2-47
IEC60601-1-2
American Advancement of ANSI/AAMI EC 38-1998
