Core Technology

TaiDoc focus on 4 core technologies – Medical Electronics, Biochemistry, Photometry and Software Programming. We utilize our core technologies to develop products in Diagnostics, Home Care, Professional Instrument and Telehealth.

Medical Electronics

Based on the advanced electronics and IT capability in Taiwan, TaiDoc develops minimized and user-friendly medical devices.

Biochemistry

TaiDoc provides accurate quantitative results in terms of test strips and cartridges for bio-signal detection.

Photometry

TaiDoc employs Photometric technology to develop devices for qualitative and quantitative measurement.

Software Programming

TaiDoc develops the vertical software integration to link personal health data with smart phone application and telehealth system.

Core Technology

Cutting Edge Technology

Multiple Parameter Monitoring Systems Provide 6 parameters for a comprehensive care

Multiple Parameter Monitoring Systems 6 Strips

XPER Technology

XPER, golden coating and laser engraving combine with 2+2 bio signal are the techniques to perform the stability, accuracy and measurement results.

XPER, golden coating and laser engraving combine with 2+2 bio signal are the techniques to perform the stability, accuracy and measurement results.

XPER, golden coating and laser engraving combine with 2+2 bio signal are the techniques to perform the stability, accuracy and measurement results.

  • Enzyme: GDH-FAD
  • Sample size: 0.5 μL
  • Reaction time: 5 seconds
  • HCT range: 0 % – 70 %
  • Glucose range: 10 – 800 mg/dL

Taidoc 2 + 2 Technology

TaiDoc patented the 2 + 2 (2 enzymes plus 2 signals) technology, which uses two different wells on the strips to detect HCT value by AC signal and glucose value by DC signal.

TaiDoc patented the 2 + 2 (2 enzymes plus 2 signals) technology, which uses two different wells on the strips to detect HCT value by AC signal and glucose value by DC signal.

  • Enzyme: GDH-FAD
  • Sample size: 1.0 μL
  • Reaction time: 5 seconds
  • HCT range: 0 % – 70 %
  • Glucose range: 10 – 700 mg/dL

EF ( Electricity Fractionation ) technology utilize the negative charge characteristic on cell surface to separate blood cells from plasma for further estimation of hematocrit value.

1

Positive and negative charge will be created after applying blood sample.

Positive and negative charge will be created after applying blood sample.

Blood cells will be attracted to positive electrode.

Blood cells will be attracted to positive electrode.

The meter could simulate a hematocrit free condition from plasma phase and further estimate the HCT value to compensate the blood glucose value.

‧Enzyme: GDH-FAD
‧Sample size: 0.5 μL
‧Reaction time: 6 seconds
‧HCT range: 20 % – 65 %
‧Glucose range: 20 – 650 mg/dL

The meter could simulate a hematocrit free condition from plasma phase and further estimate the HCT value to compensate the blood glucose value.

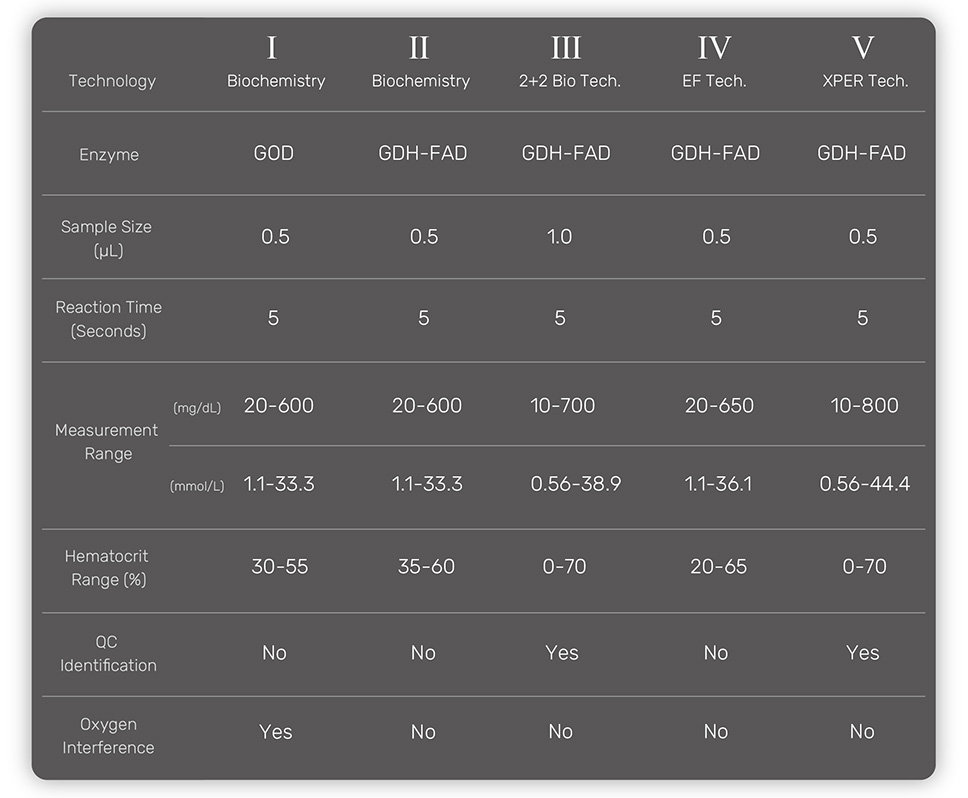

Blood Glucose Monitoring Systems List

TaiDoc has developed 5 generations of test strip with different level and fulfils the accuracy requirements of ISO 15197 : 2013 & EN ISO 15197 : 2015.

IR Technology

TaiDoc’s infrared sensor technology can directly detect the temperature to reduce the measurement error in detecting thermo-wave, which means the measurement has less interference from ambient temperature.

Infrared Sensor Technology

Cardiovascular Evaluation Technology

Smartphone APP can capture and analyze the signal from semiconductor sensor on the blood pressure monitor. Our smartphone App can give the indications of high risk factors-

  • Fast Heartbeats
  • Slow Heartbeats
  • Irregular Heartbeats
  • Atrial Fibrillation
  • Cardiovascular Evaluation

Design

Industrial Design

  • Ergonomic designs with handy operation
  • Culture-oriented toning
  • Computer aided design & digitalized information flow for perfect designing

Mechanical Design

  • Complete implementation of CAD (computer aided design for 3D solid modeling): Pro/E, AutoCAD & computer aided manufacturing
  • Systematic integration with manufacturing
  • Precision tool design and fabrication

Visual Design

Our experienced visual designers offer trustworthy support-to-product planning. By collaborating with engineering, implementation of ERP and conformation with ISO, a prompt sample is created, and packaging, marketing and support are made possible.

Visual Design

Patents & Certificates

Patents

TaiDoc is dedicated to the development of unique technology and currently holding 159 patents worldwide for the IR thermometer, blood glucose meter, test strip, cardiovascular care products and more medical applications.

TaiDoc Patents : 159

Product Certificates

TaiDoc Product Certificates
